M Chiller FUGU - standard water-cooled ammonia chillers

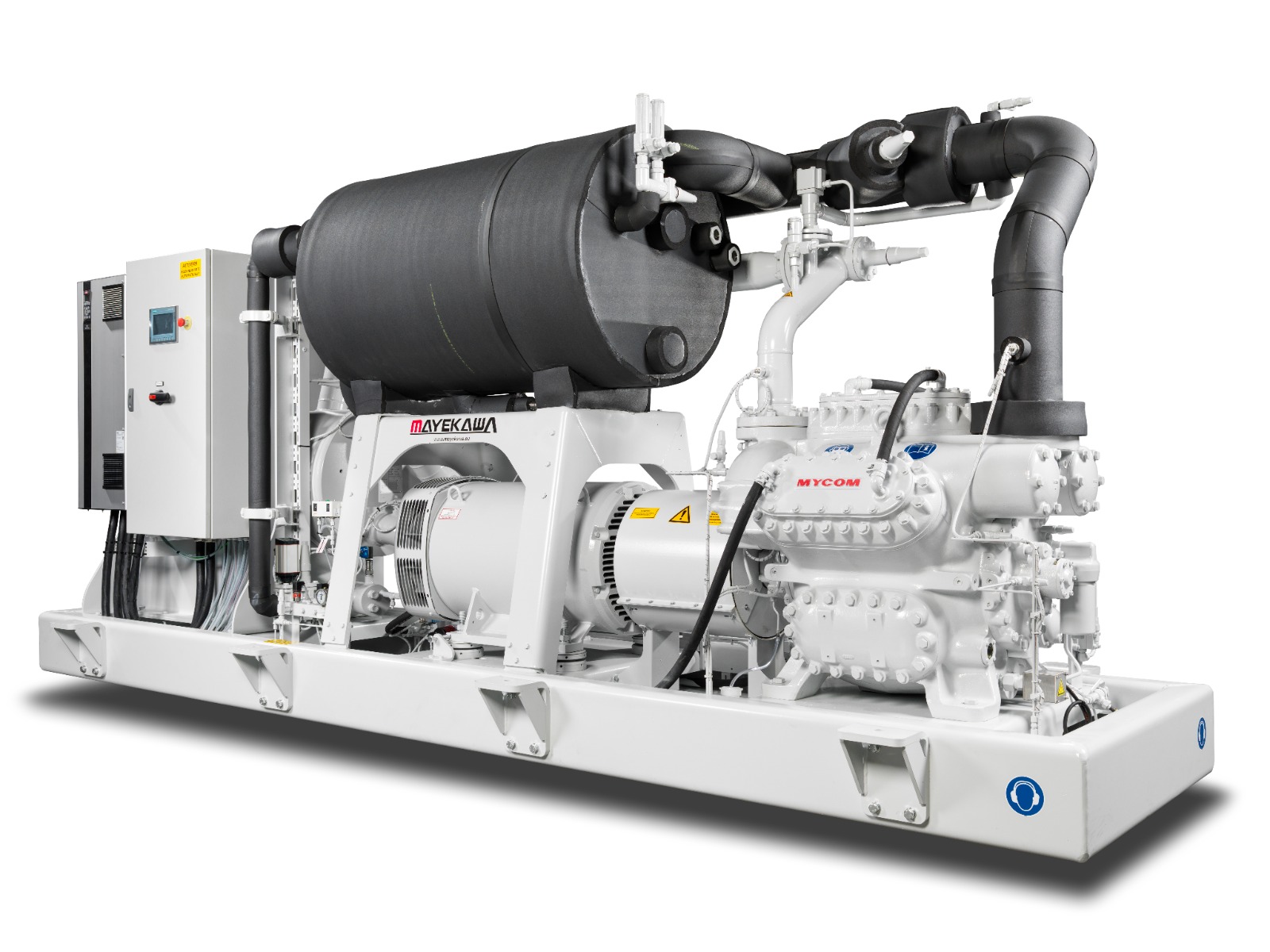

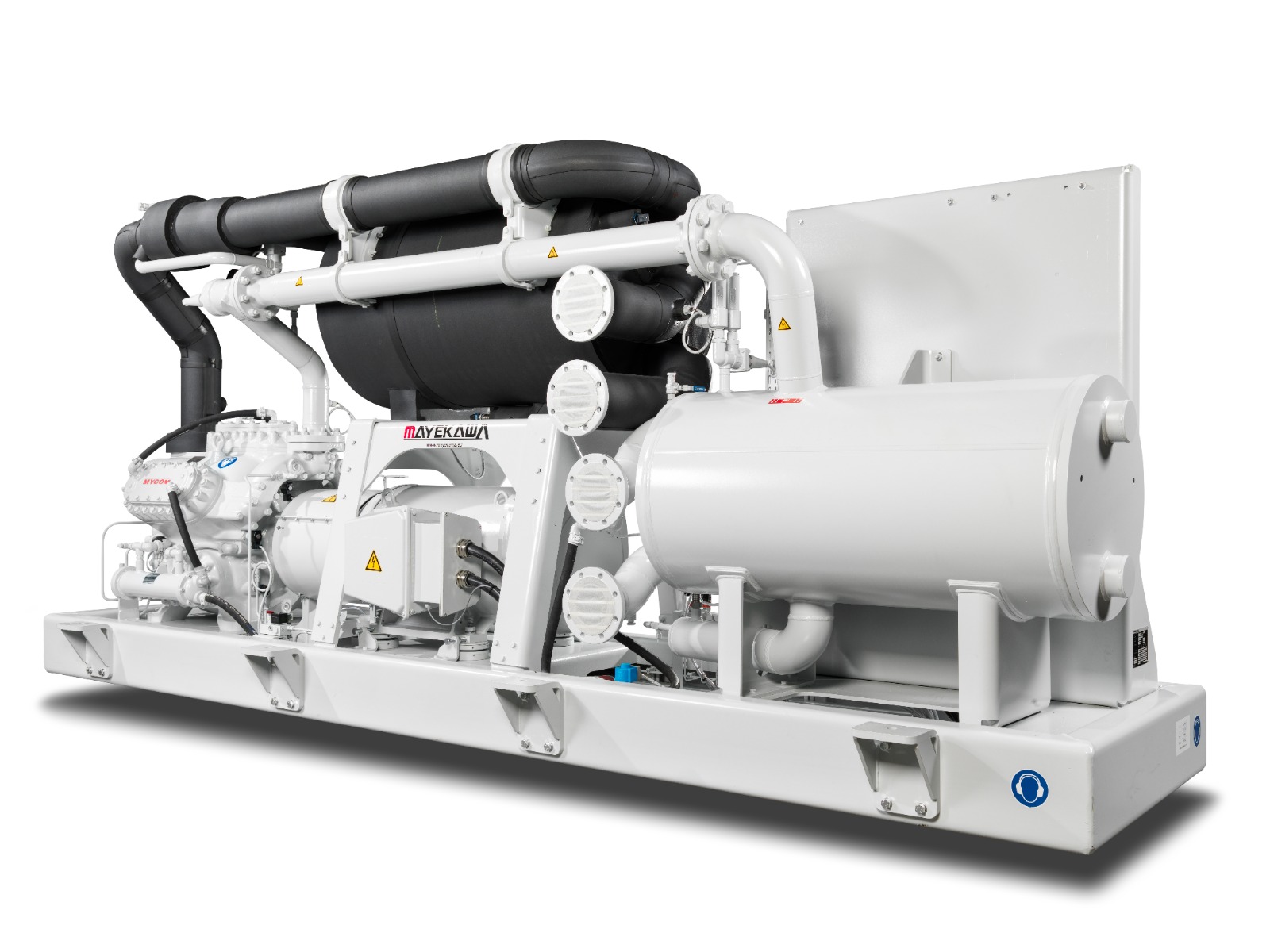

mCHILLER FUGU 1280R, 960R, 640R

mCHILLER FUGU in the versions 1280R, 960R,
and 640R is designed to meet the needs of
industrial and semi-industrial markets such as
breweries, industrial processes, server farms,
building facilities etc.

mCHILLER FUGU 1280R, 960R and 640R has
a strong industrial design, long lifespan
– and can be used in a wide variety of
applications.



Key Features

     • Strong industrial design
     • Low charge ammonia
     • High effiency
     • Plug-and-play solution

Benefits

    • Reliable performance
    • Safe solution
    • Low operation cost
    • Easy and convenient
      installation


mCHILLER model                       FUGU 1280R     FUGU 960R     FUGU 640R

Cooling side connections             2/4x DN100        2/4x DN100      2/4x DN80
Heat rejection side connections   2/4x DN100        2/4x DN100      2/4x DN80
Length (L)                                    4895 mm             4895 mm          4895 mm
Width (W)                                     1200 mm             1200 mm          1200 mm
Height (H)                                     2150 mm             2150 mm          1970 mm
Dry weight                                     8050 kg              8050 kg             6400 mm
